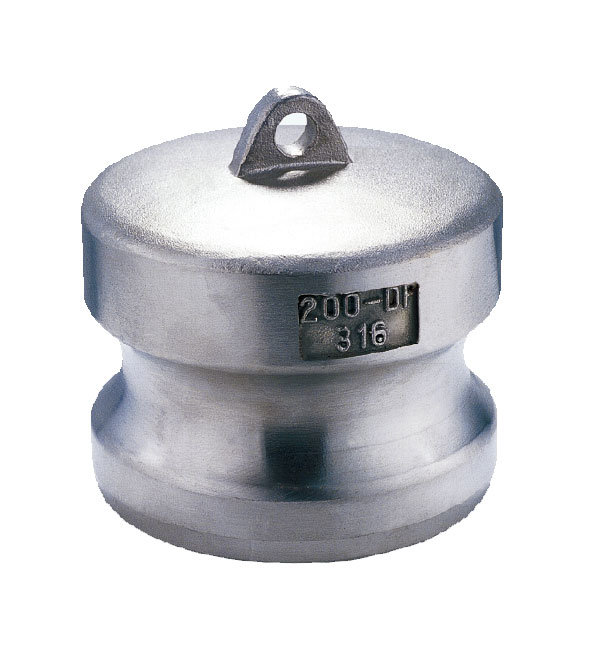

Stainless Steel Camlock Fitting Type DP

  • Description

Description

Casting method:forged(SS precision investment casting and CNC precisely machined)

OEM service: available on request

Body material:stainless steel Other material are available on request

Handle material: stainless steel CF8M casting

Pins.Rings and Safety clips of our SS camlock: We use steel plated Pins,Rings and Safety clips.

(Note: If client don’t need Safety clips, and the qty is large, then we can decrease the cost safety clips)

Thread: BSP/BSPT/NPT

Standard: MIL-C-27487 / DIN2828/A – A-59326/API /ANSI /BS/DIN/JIS

Application: oil, mining, agriculture, food, chemistry, and fire protection industries.

Size:1/2’’ to 6’’

Type: A,B,C,D,E,F,DC,DP

Sealings of our acoples rapidos kamlock en acero inxidable: NBR EPDM Viton PTFE envelop gasket ,SILICONE.VITON Other materials are available on request.

Test pressure:3/4″-2″    250PSI(17.6bar)

3″-4″     200PSI(14.8bar)

2 1/2″    225PSI(15.8bar)

6″       150PSI(10.5bar)

Adaptive temperature: -20°C~232°C

Specially material: SUS201、202、301、302、303、304、304L、316、316L、321、310S、430 etc.

Structure: Metal Bellows

Material introduce: 316 by adding Mo, so the corrosion resistance, resistance to atmospheric corrosion and high temperature strength in particular, and can be used under conditions in Keku; hardening excellent (non-magnetic).

304 18Cr-8Ni as a wide range of uses of steel, has a good corrosion resistance, heat resistance, low temperature strength and mechanical properties; stamping, bending and good thermal processing, non-hardening heat treatment (non-magnetic, then with warm Chong -196 ℃ ~ 800 ℃).

competitive advantages:

Easy to connect and disconn

Experienced R&D teams

international approvals

product features

product performance

prompt delivery

accept small order

Our main products: all kinds of Camlock Fittings. Accessories, 316 Stainless Steel Cam & Groove Couplings, Aluminium Cam & Groove Quick Couplings, Aluminum Guillemin Coupling, Bauer Type Coupling, Brass Cam & Groove Quick Couplings, Brass Tankwagon Coupling, Guillemin Coupling, Hose Clamps, Nylon Cam & Groove Quick Couplings, Polypropylene Cam & Groove Quick Couplings, Reduced Coupling, Safety Clamp, Stainless Steel Guillemin Coupling, Stainless Steel Tankwagon Coupling, Standard Cam & Groove Coupling, Tankwagon Coupling Din28450, Trank Truck Coupling

For detail information please directly contact us
