Steel Piple Nipples

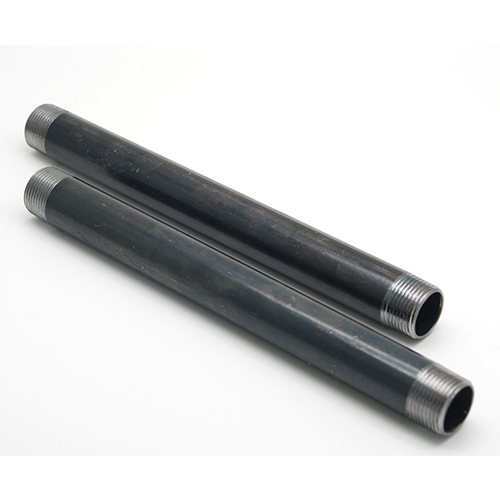

Black steel pipe nipples are produced by the iron oxide manufacturing process which applies heat and pressure to seamless pipe. They are then cut to size and NPT male threaded on both ends by a fabrication shop, making it easy to use with black malleable iron pipe fittings and great for easy installation.
- Description
Description

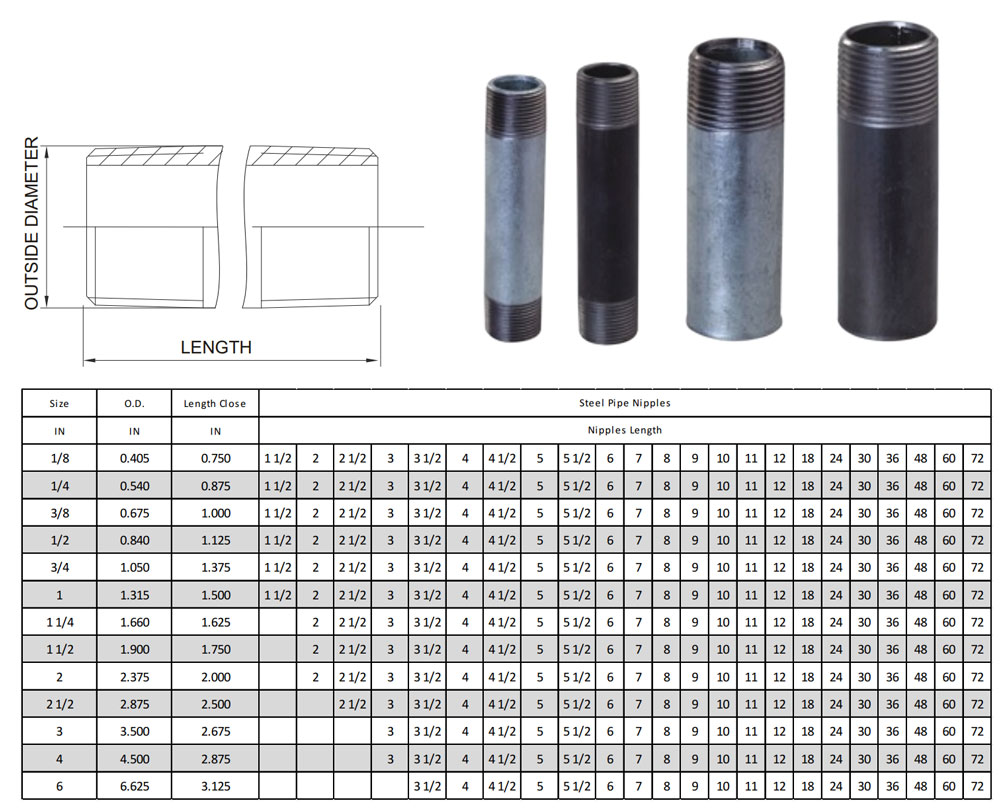

We offer a variety of sizes:
Black Pipe Nipples (from 1/8″” to 8″”)
Pre-Cut Black Pipe Nipples (from 14″” to 120″”)
Their seamless design allows them to be used in low pressure plumbing applications with water, oil, gas, chemical, steam and air. Due to its strong heat resistance and ability to resist water damage, black iron pipe is also frequently used in water supply lines and fire sprinkler systems.
Connect all your piping requirements with carbon steel nipples .Standard black and galvanized nipples come in pipe sizes from 1/8” to 8” and lengths from close to 12” long. We can manufacturer special non-standard pipe nipple lengths.
- ASTM A733 Standard Specification for Welded and Seamless Carbon Steel Pipe Nipples
- Material
- ASTM A53 / ASME SA53 Welded
- ASTM A106 / ASME SA53 Seamless
- ASTM A333 Gr 6 / ASME SA333 Gr 6 Seamless Low Temperature
- Finish in Black, Hot Dip Galvanized or Zinc Electroplated
- NPT threads conform to ASME B1.20.1
- End Connections
- NPT Threaded both ends is standard
- Plain End
- Grooved
- Special options like NPT Left Hand, NPSM Straight thread and BSPT British Taper are available
- Pipe schedules of S40, S80, S160, and XXH
- Tolerances
- Outside diameter for pipe size 1/8” to 1-1/2” – over/under 1/64”
- Outside diameter for pipe size 2” to 4” – over/under 1/32”
- Outside diameter for pipe size 5” to 8” – over/under 1/16”
- Standard nipple length – over/under 1/16”
- Non-standard nipple length and nipples longer than 12” – over/under 1/8”
